We offer both manual and electronic lock options for all safe deposit box systems, including self-service units. Our safe deposit box management software streamlines the management and leasing of electronic safe deposit boxes.
Our standard finish is brushed stainless steel, with box numbers applied using inset number plates. Optional powder-coated finishes or lightweight designs (Compact version) are also available upon request.
Wertheim provides continuous availability through our service hotline. Known for expert advice, rapid response times, and highly trained technicians, we ensure smooth maintenance and service.
Wertheim safe deposit box systems come with a 2-year warranty (excluding electronic components). If any defects arise within this period, they will be repaired free of charge.
Wertheim deposit boxes are manufactured in blocks and assembled into systems on site. The blocks are suitable for both wall-mounted and free-standing groupings. The systems can be optimally designed for every application thanks to different locker heights. The fully assembled system presents itself as a uniform whole.

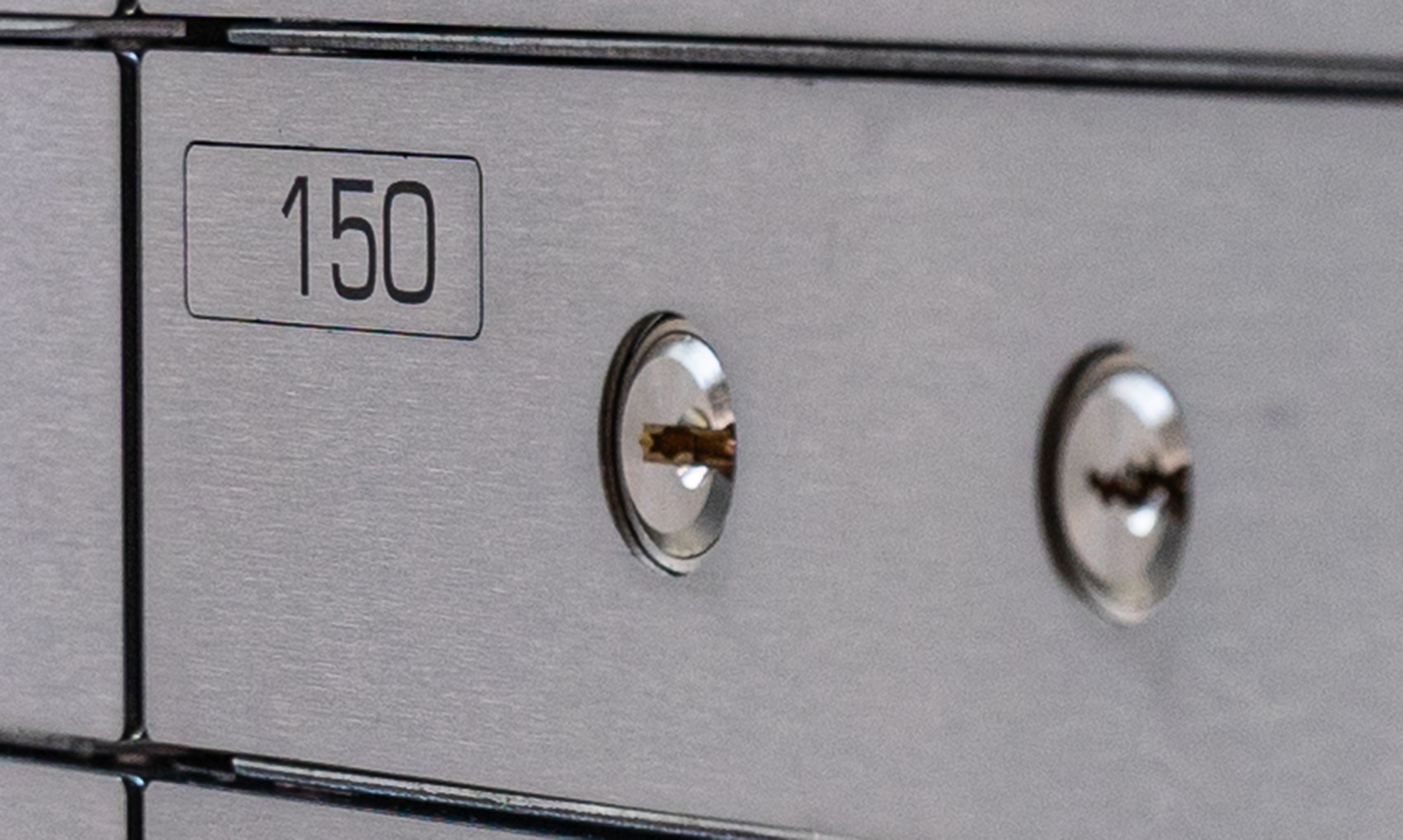

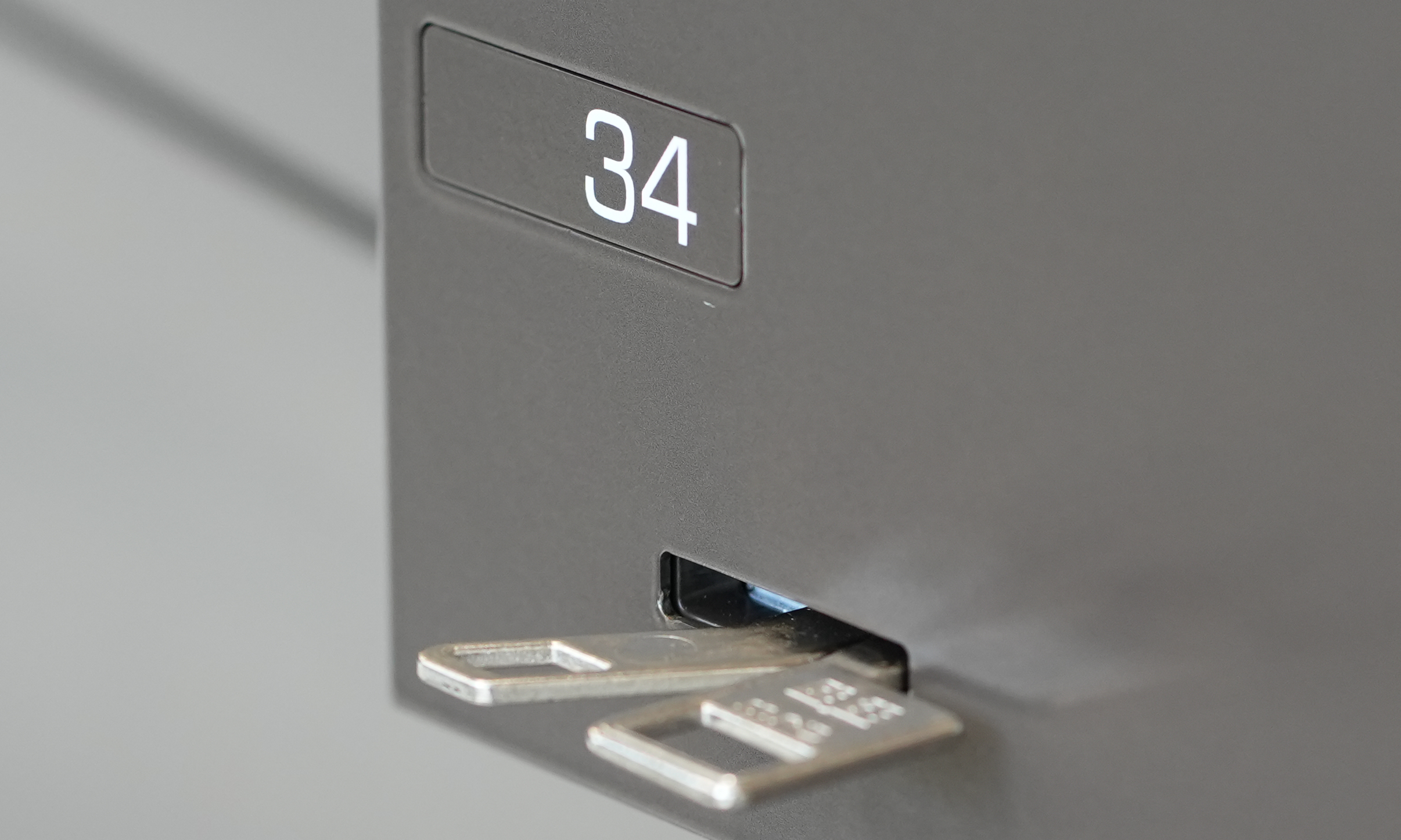

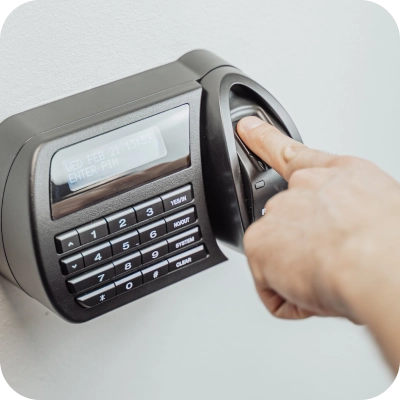

Lock Options: Magnetic lock or built-in half-cylinder lock (mechanical/electronic)
Keys: Each system includes two bank keys and two keys for the individual lock of each locker.
Finish: Brushed stainless steel, box numbering with inlaid number plates.

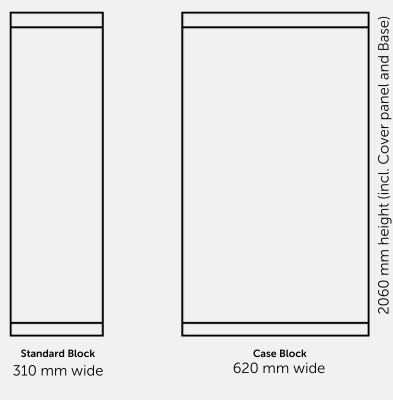

2060 x 310 x 460 mm
2060 x 620 x 460 mm
Cover panel 80 mm high
Base 80 mm high
| Box | Volume (l) | Internal Compartment Dimensions (H x B x T mm) | Cassette Dimensions (H x B x T mm)* |
|---|---|---|---|
1 |
5,3
|
48,5 x 265 x 413 |
43 x 250 x 355
|
2 |
10,8
|
98,5 x 265 x 413 |
93 x 250 x 355
|
3 |
16,2
|
148,5 x 265 x 413 |
143 x 250 x 355
|
4 |
21,7
|
198,5 x 265 x 413 |
193 x 250 x 355
|
5 |
27,2
|
248,5 x 265 x 413 |
243 x 250 x 355
|
6 |
32,7
|
298,5 x 265 x 413 |
293 x 250 x 355
|
9 |
49,1
|
448,5 x 265 x 413 |
Adjustable shelf
|
10 |
54,6
|
498,5 x 265 x 413 |
Adjustable shelf
|

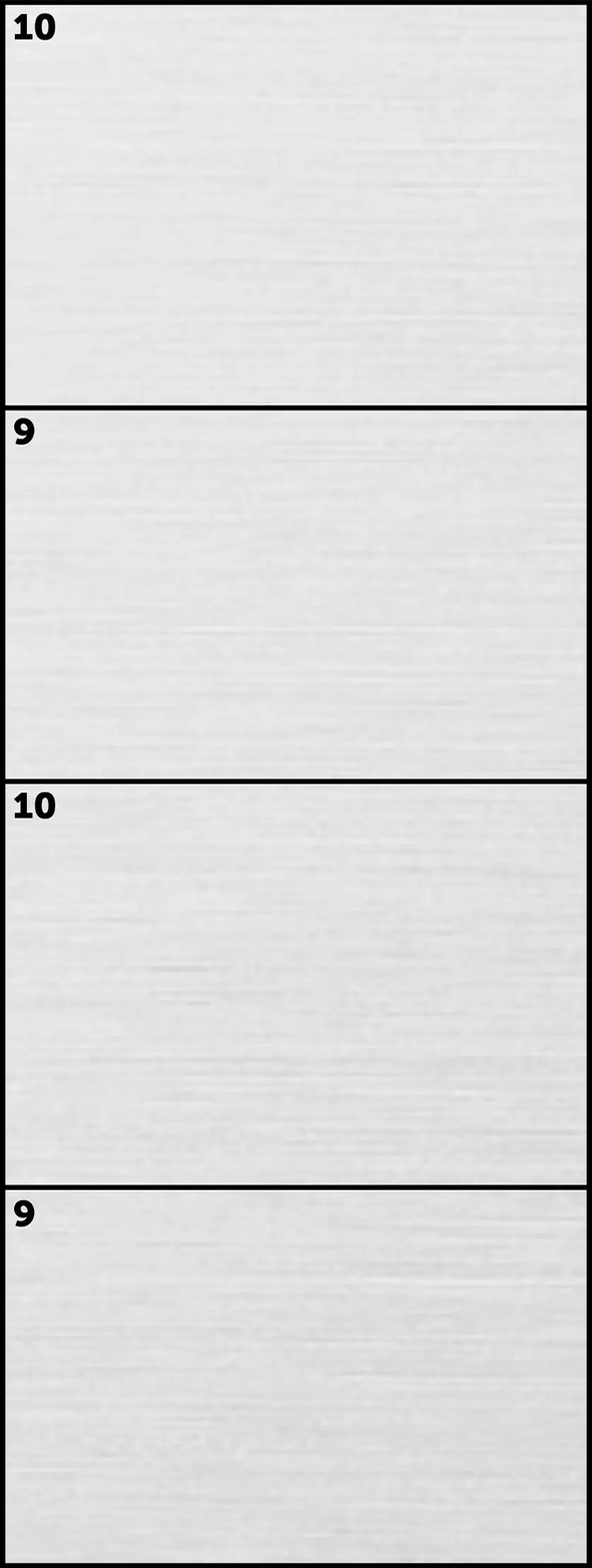

| Box | Volume (l) | Internal Compartment Dimensions (H x B x T mm) | Cassette Dimensions (H x B x T mm)* |
|---|---|---|---|
9 |
106,5
|
448,5 x 575 x 413 |
Adjustable shelf
|
10 |
118,4
|
498,5 x 575 x 413 |
Adjustable shelf
|

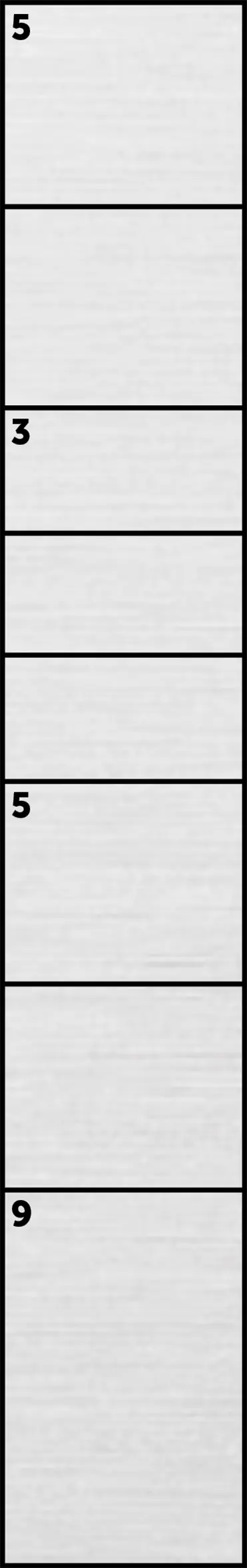

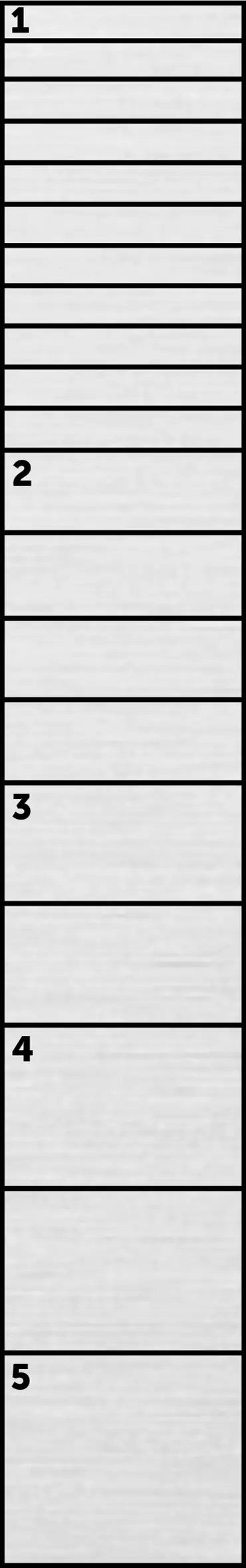

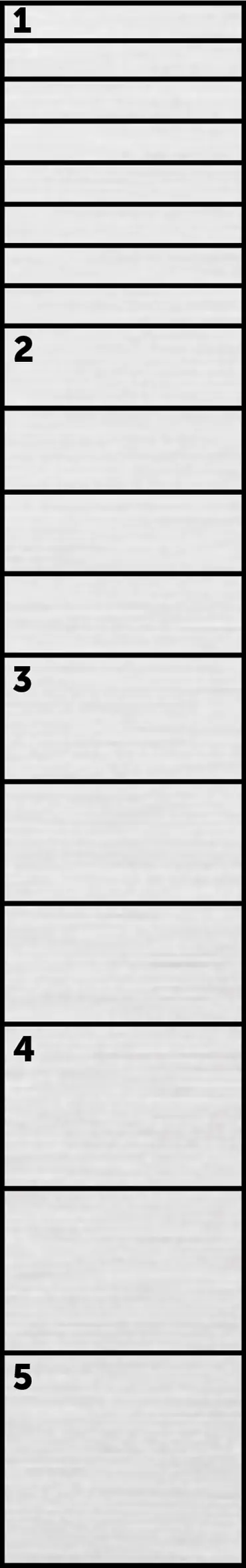

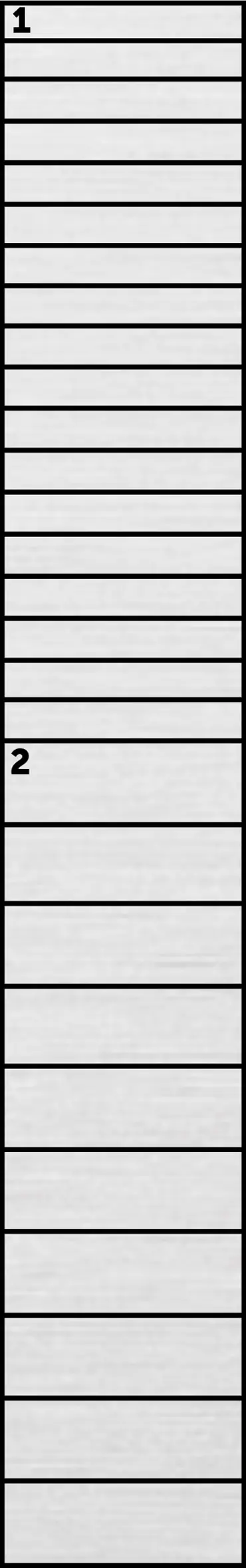

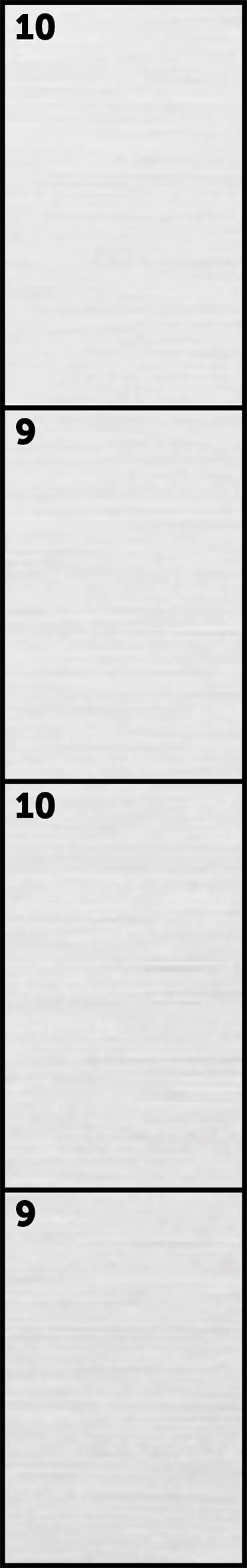

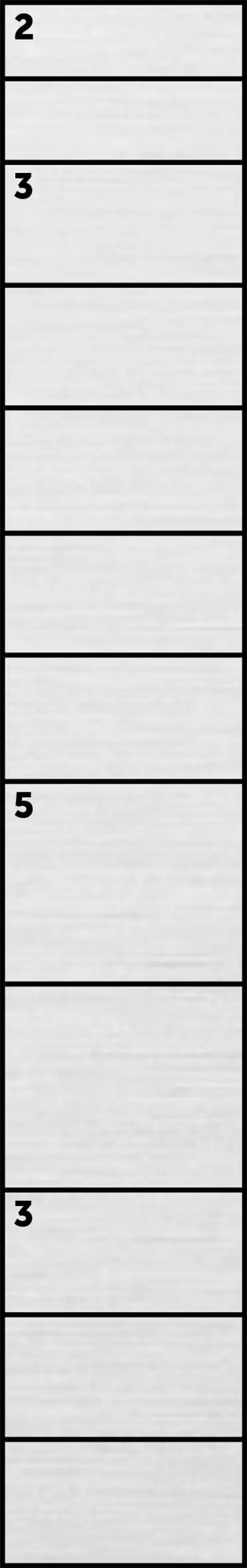

Multiple rental safe deposit blocks can be arranged side-by-side, with different box configurations available.
*Please note: add 30 mm to the specified depth of the cassette for the handle.

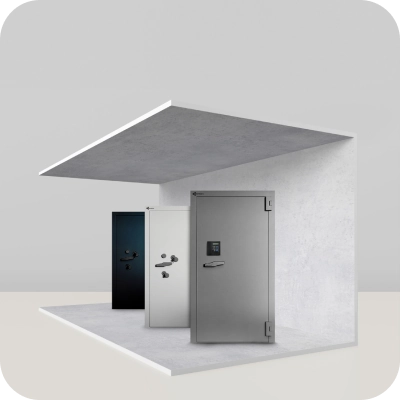

A vault room consists of numerous components that make it a high-security product. From robust vault doors and safe deposit box systems to software for managing lockers—each element contributes to making your Wertheim vault room both perfect and reliable.
