The advantages at a glance

Decades of Experience

With over 170 years of expertise, Wertheim has been a trusted supplier for financial institutions, various retail sectors, government bodies, pharmaceutical companies, and private clients. .

Certified Quality

Our commitment to excellence is reflected in our products, and we uphold this standard through continuous quality certifications by prominent European institutes..

All Resistance Grades from I to XIIIKB

Depending on your security requirements, we offer vault rooms across all available resistance grades on the market, from Grade I to XIIIKB..

Lightweight and Extremely Durable

Our specialized reinforcements and high-strength fillings provide maximum protection while adapting flexibly to your unique security needs. .

More Usable Capacity

Thanks to reduced wall thickness in the vault modules, usable interior space is increased. For instance, a traditional 500 mm wall thickness can be reduced to 125 mm in modular construction while maintaining the same resistance grade..

Shorter Construction Times

With modular vault rooms, the elimination of concrete drying time means shorter construction times, allowing you to put your vault into service sooner..

Everything from a Single Source

Vault rooms, vault doors, safe deposit boxes, and software – we provide everything you need for a seamless vault room project execution..

In-House Manufacturing

We take pride in our in-house production, where we uphold the highest standards in the security industry. Our short decision-making paths make it easy to design custom solutions tailored to your specific needs..

{"mainImage":{"id":2551,"url":"https:\/\/wertheim.at\/wp-content\/uploads\/2024\/03\/hotspot-scaled.webp","size":"full"},"dots":[{"position":{"x":34.34349407208113,"y":39.31378376593356},"wcProduct":{"productId":null,"productName":"","productPermalink":"","productShortDescription":"","productFeaturedImage":{"url":"","size":"large"},"productStockStatus":"","productPrice":""},"customProduct":{"productName":"Safe deposit boxes","productPermalink":"","productShortDescription":"We offer customized locker systems for your vault room, covering all locking options. Whether mechanically or electronically controlled compartments \u2013 we have the right solution for your needs","productFeaturedImage":{"url":"","size":"large"},"productPrice":""},"tooltip":{"direction":"column","style":{"position":"left","layout":"horizontal","width":"330px","height":"auto","background":{"hsl":{"h":0,"s":0,"l":1,"a":1},"hex":"#ffffff","rgb":{"r":255,"g":255,"b":255,"a":1},"hsv":{"h":0,"s":0,"v":1,"a":1},"oldHue":0,"source":"hsv"},"triangle":true},"containers":[{"type":"container","style":{"gridSize":"0px","padding":{"left":0,"top":0,"right":0,"bottom":0}},"blocks":[]},{"type":"container","style":{"gridSize":"1fr","padding":{"left":16,"top":16,"right":16,"bottom":16}},"blocks":[{"type":"text","source":"productName","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":24,"fontWeight":600,"margin":{"left":0,"top":8,"right":0,"bottom":8}}},{"type":"text","source":"productShortDescription","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":16,"fontWeight":300,"margin":{"left":0,"top":8,"right":0,"bottom":8}}}]}]},"style":{"pulsating":"always","opacity":1,"background":{"hsl":{"h":43.448275862068954,"s":0.2761904761904761,"l":0.7941176470588236,"a":1},"hex":"#d9d1bc","rgb":{"r":217,"g":209,"b":188,"a":1},"hsv":{"h":43.448275862068954,"s":0.13364055299539163,"v":0.8509803921568627,"a":1},"oldHue":213.9130434782609,"source":"hex"},"size":"32px","borderWidth":"0px","borderColor":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}}}},{"position":{"x":65.75407267244184,"y":56.50221253549964},"wcProduct":{"productId":null,"productName":"","productPermalink":"","productShortDescription":"","productFeaturedImage":{"url":"","size":"large"},"productStockStatus":"","productPrice":""},"customProduct":{"productName":"Vault doors","productPermalink":"","productShortDescription":"Depending on the resistance grade of the room, we also provide the appropriate doors. For every requirement, we offer the right product: integrated emergency doors, various lock options, day doors \u2013 with us, you\u2019ll find the ideal solution.","productFeaturedImage":{"url":"","size":"large"},"productPrice":""},"tooltip":{"direction":"column","style":{"position":"right","layout":"horizontal","width":"360px","height":"auto","background":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}},"triangle":true},"containers":[{"type":"container","style":{"gridSize":"0px","padding":{"left":0,"top":0,"right":0,"bottom":0}},"blocks":[]},{"type":"container","style":{"gridSize":"1fr","padding":{"left":16,"top":16,"right":16,"bottom":16}},"blocks":[{"type":"text","source":"productName","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":24,"fontWeight":600,"margin":{"left":0,"top":8,"right":0,"bottom":8}}},{"type":"text","source":"productShortDescription","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":16,"fontWeight":300,"margin":{"left":0,"top":8,"right":0,"bottom":8}}}]}]},"style":{"pulsating":"always","opacity":1,"background":{"hsl":{"h":43.448275862068954,"s":0.2761904761904761,"l":0.7941176470588236,"a":1},"hex":"#d9d1bc","rgb":{"r":217,"g":209,"b":188,"a":1},"hsv":{"h":43.448275862068954,"s":0.13364055299539163,"v":0.8509803921568627,"a":1},"oldHue":213.9130434782609,"source":"hex"},"size":"32px","borderWidth":"0px","borderColor":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}}}},{"position":{"x":58.374478904887205,"y":26.210289941219205},"wcProduct":{"productId":null,"productName":"","productPermalink":"","productShortDescription":"","productFeaturedImage":{"url":"","size":"large"},"productStockStatus":"","productPrice":""},"customProduct":{"productName":"Vault room in modular design","productPermalink":"","productShortDescription":"The vault room is assembled from modular elements, enabling maximum flexibility, short construction times, and high cost efficiency.","productFeaturedImage":{"url":"","size":"large"},"productPrice":""},"tooltip":{"direction":"column","style":{"position":"left","layout":"horizontal","width":"360px","height":"auto","background":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}},"triangle":true},"containers":[{"type":"container","style":{"gridSize":"auto","padding":{"left":0,"top":0,"right":0,"bottom":0}},"blocks":[]},{"type":"container","style":{"gridSize":"1fr","padding":{"left":16,"top":16,"right":16,"bottom":16}},"blocks":[{"type":"text","source":"productName","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":24,"fontWeight":600,"margin":{"left":0,"top":8,"right":0,"bottom":8}}},{"type":"text","source":"productShortDescription","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":16,"fontWeight":300,"margin":{"left":0,"top":8,"right":0,"bottom":8}}}]}]},"style":{"pulsating":"always","opacity":1,"background":{"hsl":{"h":43.448275862068954,"s":0.2761904761904761,"l":0.7941176470588236,"a":1},"hex":"#d9d1bc","rgb":{"r":217,"g":209,"b":188,"a":1},"hsv":{"h":43.448275862068954,"s":0.13364055299539163,"v":0.8509803921568627,"a":1},"oldHue":213.9130434782609,"source":"hex"},"size":"32px","borderWidth":"0px","borderColor":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}}}},{"position":{"x":50,"y":50},"wcProduct":{"productId":null,"productName":"","productPermalink":"","productShortDescription":"","productFeaturedImage":{"url":"","size":"large"},"productStockStatus":"","productPrice":""},"customProduct":{"productName":"Safe-Service 6.0","productPermalink":"","productShortDescription":"Wertheim Safe Service is a software solution for vault rooms and their locker systems, providing system- and platform-independent control, management, and data handling for an entire bank safe deposit system.","productFeaturedImage":{"url":"","size":"large"},"productPrice":""},"tooltip":{"direction":"column","style":{"position":"bottom","layout":"horizontal","width":"324px","height":"auto","background":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}},"triangle":true},"containers":[{"type":"container","style":{"gridSize":"0px","padding":{"left":0,"top":0,"right":0,"bottom":0}},"blocks":[{"type":"media","source":"productFeaturedImage","options":{"size":"large"},"style":{"backgroundPosition":"center"}}]},{"type":"container","style":{"gridSize":"1fr","padding":{"left":16,"top":16,"right":16,"bottom":16}},"blocks":[{"type":"text","source":"productName","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":24,"fontWeight":600,"margin":{"left":0,"top":8,"right":0,"bottom":8}}},{"type":"text","source":"productShortDescription","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":16,"fontWeight":300,"margin":{"left":0,"top":8,"right":0,"bottom":8}}},{"type":"text","source":"productPrice","options":[],"style":{"color":{"hex":"#000","rgb":{"r":0,"g":0,"b":0,"a":1}},"fontSize":16,"fontWeight":300,"margin":{"left":0,"top":8,"right":0,"bottom":8}}}]}]},"style":{"pulsating":"always","opacity":1,"background":{"hsl":{"h":43.448275862068954,"s":0.2761904761904761,"l":0.7941176470588236,"a":1},"hex":"#d9d1bc","rgb":{"r":217,"g":209,"b":188,"a":1},"hsv":{"h":43.448275862068954,"s":0.13364055299539163,"v":0.8509803921568627,"a":1},"oldHue":213.9130434782609,"source":"hex"},"size":"32px","borderWidth":"0px","borderColor":{"hex":"#fff","rgb":{"r":255,"g":255,"b":255,"a":1}}}}]}

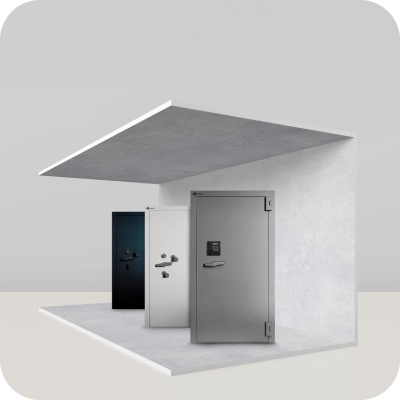

Modular

Vault Rooms

Modular construction offers numerous advantages. Firstly, by eliminating concrete drying times, the construction process is significantly shortened, allowing for quicker commissioning of your vault room. Additionally, with reduced wall thickness (while maintaining the same resistance grade), you benefit from increased usable space within your vault room.

Why

Modular Construction?

Lightweight and extremely resilient
Increased usable space
Shorter construction times
Possible to dismantle

Model Overview

Vault Rooms

Our modular vault rooms are available in 14 security grades, from Grade I to XIIIKB, and in various configurations. Models with core drill protection (KB) are also an option. Additionally, all models from Grade V onward provide extra protection against explosive attacks.

Download as PDF

Resistance grade VdS | ECB·S
Security class VSÖ
Door thickness (mm)
Weight (kg/m2)

AET070
Grade I
Class EN 1
70
200

BET027
Grade II
Class EN 2
27
90

BET070
Grade II
Class EN 2
70
200

CET070
Grade III
Class EN 3
70
210

DET070
Grade IV
Class EN 4
70
210

EET070
Grade V
Class EN 5
70
220

FET070
Grade VI
Class EN 6
70
225

GET100
Grade VII
Class EN 7
100
315

HET100
Grade VIII
Class EN 8
100
320

HET125
Grade VIII
Class EN 8
125
380

HET125KB
Grade VIIIKB
Class EN 9
125
390

IET125
Grade IX
Class EN 9
125
390

IET165
Grade IX
Class EN 9
165
500

IET125KB
Grade IXKB
Class EN 10
125
405

IET165KB
Grade IXKB
Class EN 10
165
510

JET150
Grade X
Class EN 10
150
470

JET195
Grade X
Class EN 10
195
590

JET150KB
Grade XKB
Class EN 11
150
480

JET195KB
Grade XKB
Class EN 11
195
600

KET200
Grade XI
Class EN 11
200
630

KET250
Grade XI
Class EN 11
250
740

KET200KB
Grade XIKB
Class EN 12
200
640

KET250KB
Grade XIKB
Class EN 12
250
750

LET250
Grade XII
Class EN 12
250
770

LET250KB
Grade XIIKB
Class EN 13
250
780

LET325KB
Grade XIIKB
Class EN 13
325
970

MET415KB
Grade XIIIKB
Class EN 14
415
1215

Tested &

Certified

Only a tested and certified vault room offers optimal protection against burglary while ensuring compliance for full insurance coverage. Rigorous testing methods and clearly defined guidelines guarantee the highest quality and full acceptance by all insurers. Certifications and regular audits verify that all Wertheim products meet the requirements of their respective resistance grades. Our certifications adhere to the European standard EN 1143-1, which specifies the testing methods and classifications for secure storage units, particularly focusing on their burglary resistance.

Project

request

From the very start, our specialists are at your side, bringing decades of experience to the planning of your project. This ensures every detail is perfectly tailored to your requirements, guaranteeing a smooth and seamless execution.

Contact us
+43 2236 320 350 or write us an e-mail to office@wertheim.at. We will be happy to help you!

Send request

1. Clarification of the need for protection

✓

To ensure the best possible protection for your valuables, the first step is to discuss your individual protection requirements with your insurance company.

2. Clarification of the space concept

✓

Relevant topics such as room size and structural measures for your vault room are then discussed with our team of experts.

3. Door and access control

✓

Once the idea of your room has been roughly explained, the locking equipment of the vault door for the access options is clarified.

4. Installation Options

✓

The next step is to clarify the details of the installation options. Are there any obstacles or static requirements that need to be considered?

5. Cost estimate

✓

Once the first steps have been completed, a cost estimate for the entire project is drawn up.

6. Detailed planning

✓

The initial concept is followed by the detailed planning of the vault room. Every detail is taken into account by our planning team in order to fulfil your requirements.

7. Production and delivery date

✓

The next step is to set up the production process. The delivery period and delivery date will also be clarified.

8. Vault attest

✓

After the installation of the safe room, a room certificate is issued, which serves as a template for the award of the label. Your vault will then be officially certified.

9. Commissioning

✓

In the penultimate step, your customised Wertheim vault can now be officially put into operation.

10. Documentation to insurance company

✓

Last but not least, documentation must be submitted to the insurance company to fix the insurance value so that your valuables remain safe.

Notes on

Delivery & installation

Strict compliance with all requirements during the delivery and installation of a Wertheim vault room is essential to ensure maximum security and functionality. This is how we ensure quality, reliability and the trust of our customers.

Site preparation

✓

A site inspection takes place before the installation of the vault room begins. This determines how the elements and the vault door are to be installed. In the case of new buildings, loading and installation can be carried out using a mobile crane, otherwise depending on the application (if possible through a ceiling opening). The load hooks required for the delivery are determined on site. It must be ensured that the final level is defined by a level mark.

ATTENTION

The transport route must be able to withstand the load from the elements or the vault door. Installation locations and transport routes must be statically checked by the client.

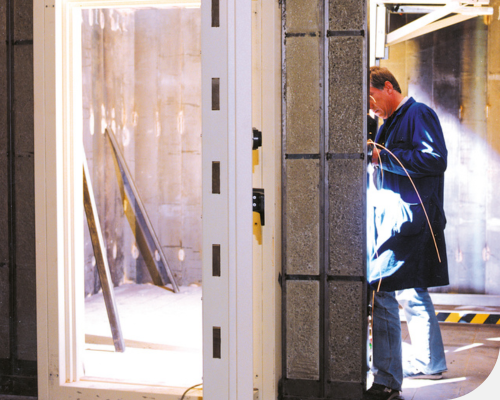

Installation

✓

Wertheim vault rooms are manufactured using a self-supporting construction method. The floor, wall and ceiling elements are laid and assembled on site. The vault door is moved together with the elements. Assembly is carried out using the “dry construction method” and therefore enables extremely short assembly times (approx. 1 to 2 weeks). It is installed either in conjunction with a building structure or free-standing as a room-in-room system.

ATTENTION

Electronic locks are enclosed. No welding work may be carried out on the vault door once electronic locks have been installed!

Discover

Our Offerings

A vault room consists of numerous components that make it a high-security product. From robust vault doors and safe deposit box systems to software for managing lockers—each element contributes to making your Wertheim vault room both perfect and reliable.
